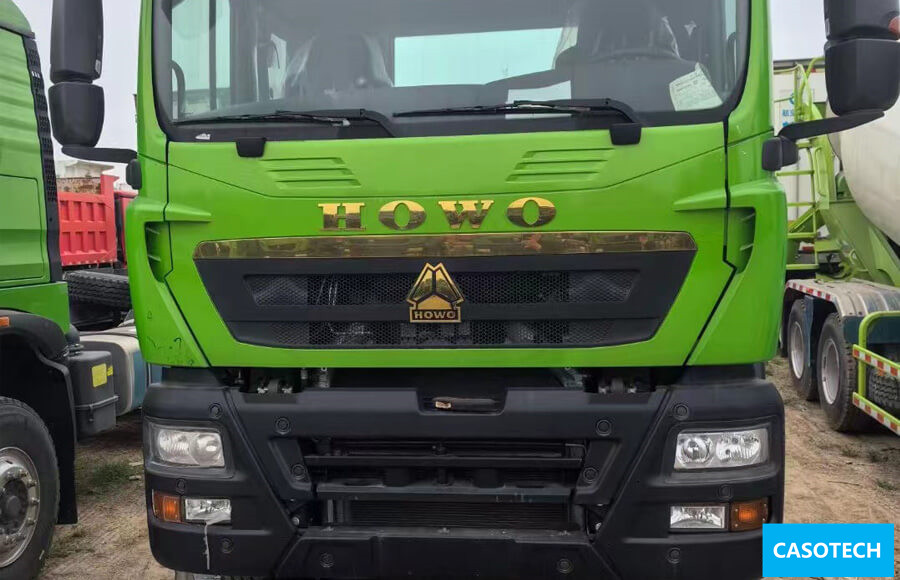

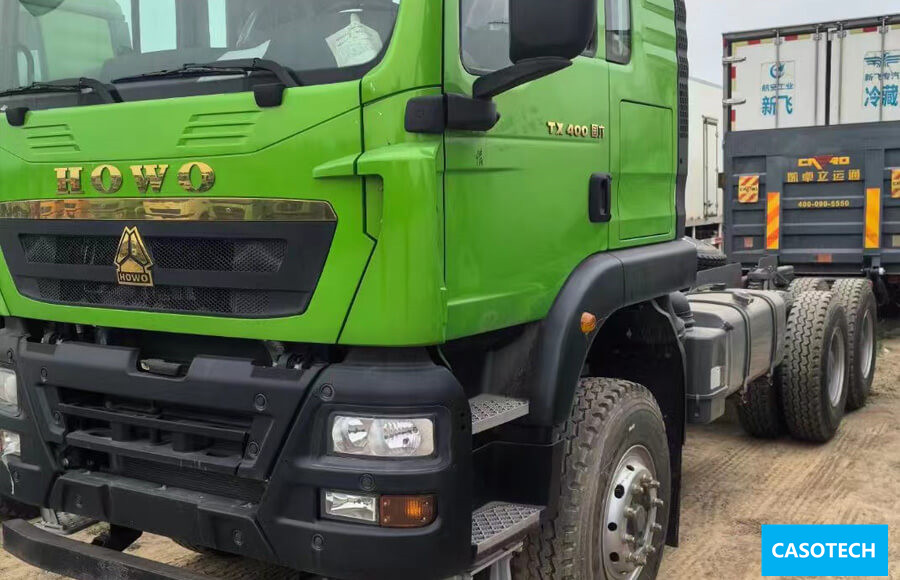

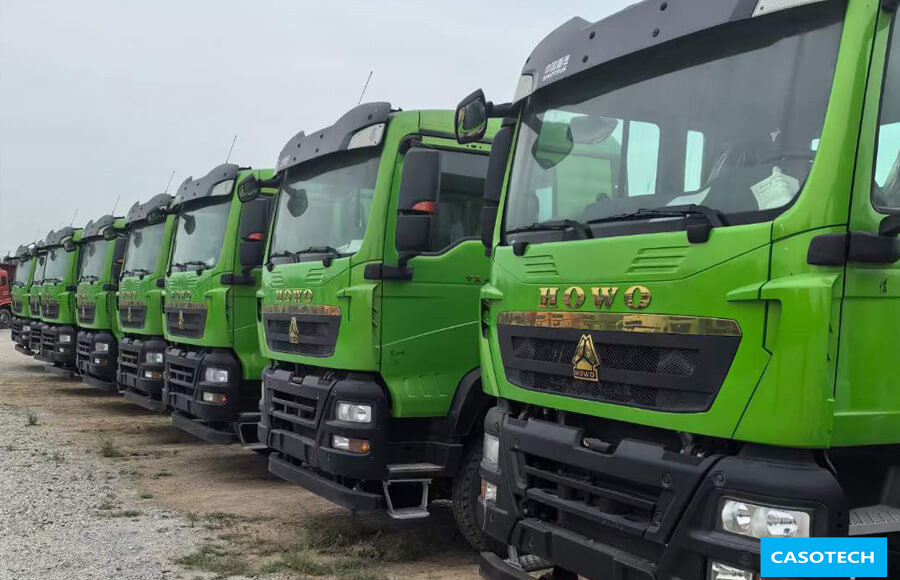

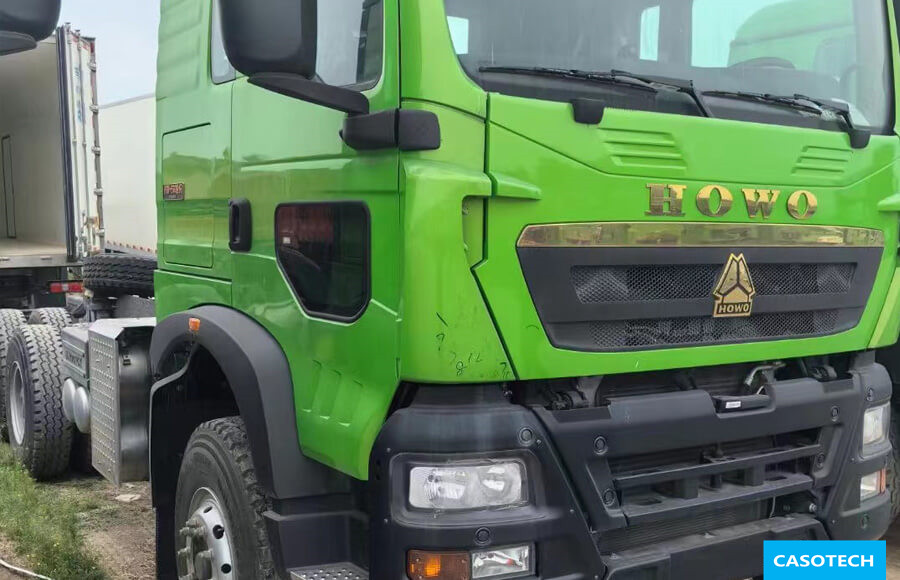

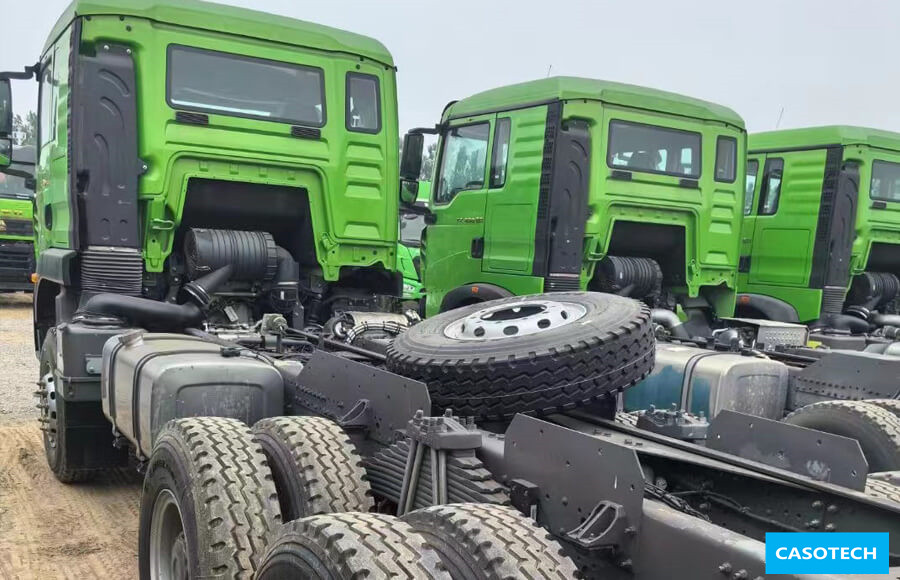

HOWO TX dump truck 400HP 6x4 Euro 6 ZZ3257V384GF
HOWO TX dump truck 400HP 6x4 Euro 6 ZZ3257V384GF1 Specifications & FeaturesBasic Info| Model | ZZ3257V384GF1 | Brand | HOWO |
|---|
| Drive model | 6x4 | Wheel base | 3285+1350mm |
|---|
| Engine model | Weichai WP10H400E62 | Gearbox | Sinotruk HW19712L |
|---|
| Rear axle ratio | 5.26 | Dimension (LxWxH) | 8490x2550x3450mm |
|---|
| Wheel track | 2041+1860/1860mm | Tare weight | 12500kg |
|---|
| Payload | 12370kg | Condition | New |
|---|
Product Parameters| Engines | Engine model | Weichai WP10H400E62 |
|---|
| No. of cylinders | 6 | | Fuel type | Diesel | | Engine capacity | 9.5L | | Emission standard | Euro 6 | | Max horsepower | 400hp | | Max power | 294kW | | Maximum torque | 1900N·m | | Gearboxes | Gearbox nodel | Sinotruk HW19712L |
|---|
| Gear shifting method | Manual | | Forward gears | 16 | | Reverse gears | 2 | | Chassis | Front axle allowable load | 7000kg |
|---|

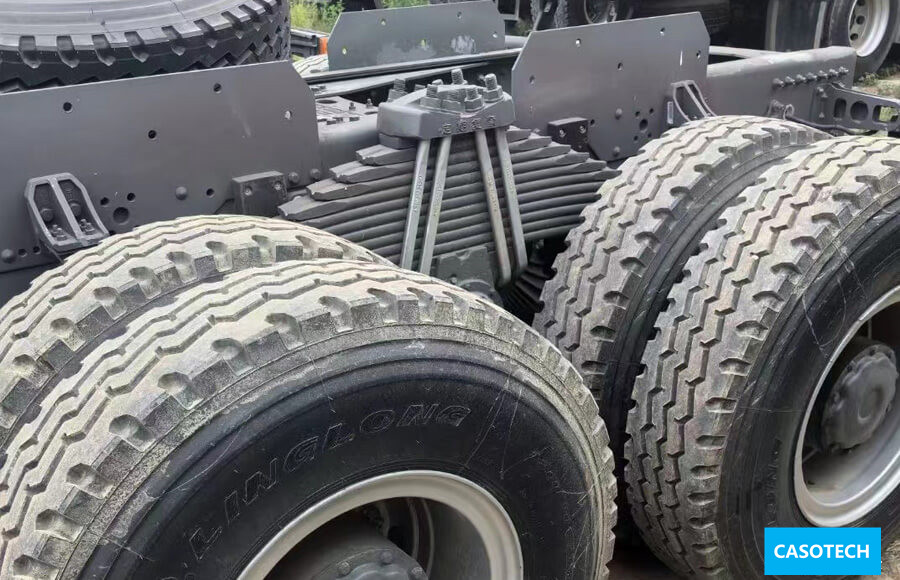

| Rear axle allowable load | 18000kg x2 | | Rear axle ratio | 5.26 | | Number of leaf springs | 11/12 | | Cargo box | Cargo box Dimension (LxWxH) | 5600x2350x1500mm、5800x2350x1500mm (optional) |
|---|
| Tire | Tire numbers | 10 |
|---|
| Tire size | 12.00R20 16PR | | Fuel tank capacity | 400L |
|---|
| Brakes | ABS (Anti-lock Braking System) |
|---|
|
