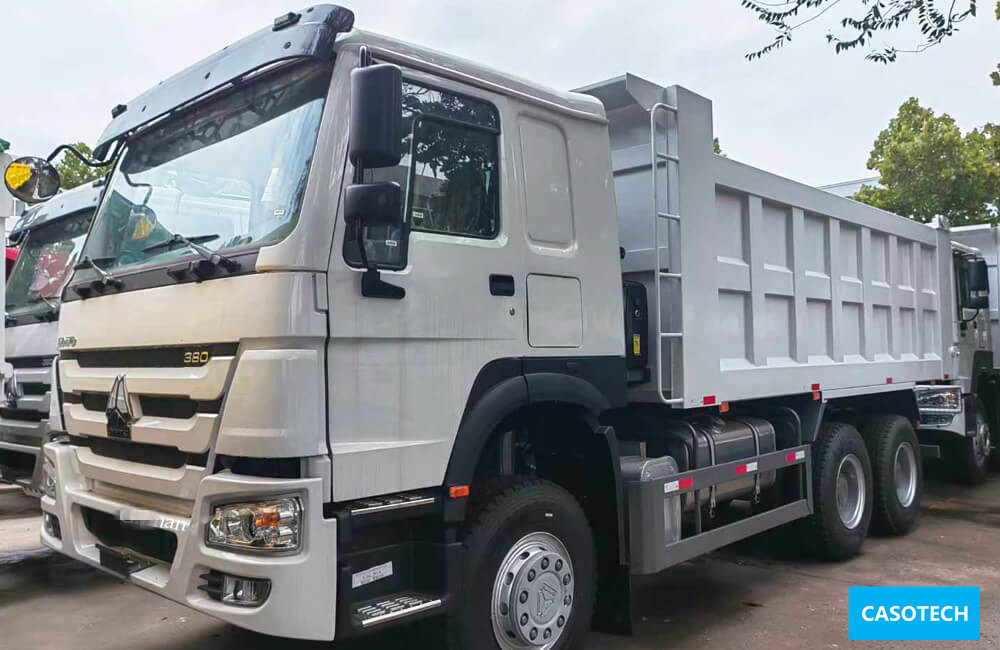

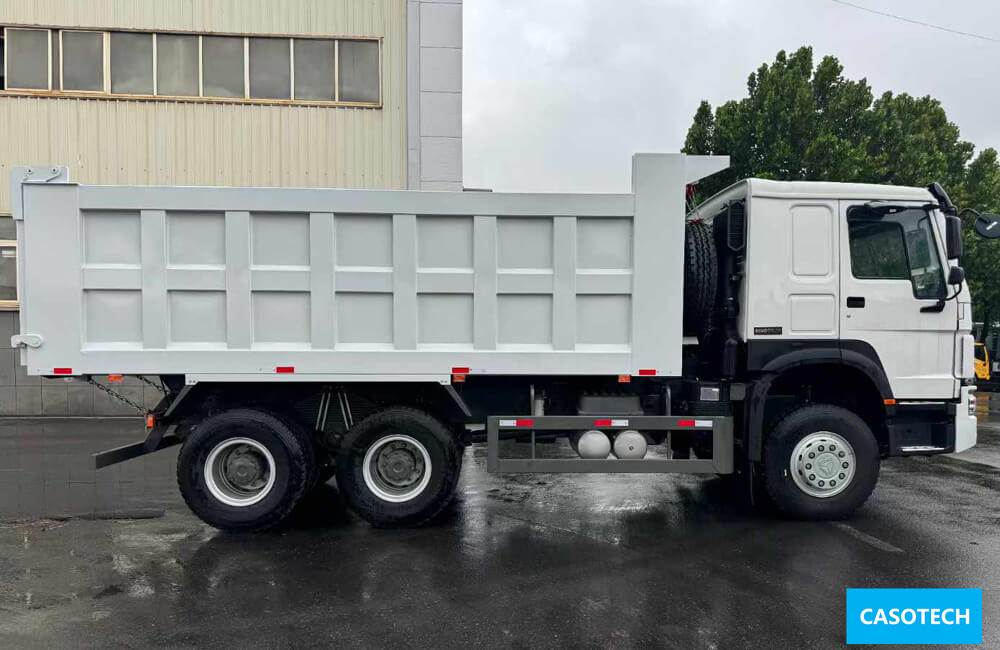

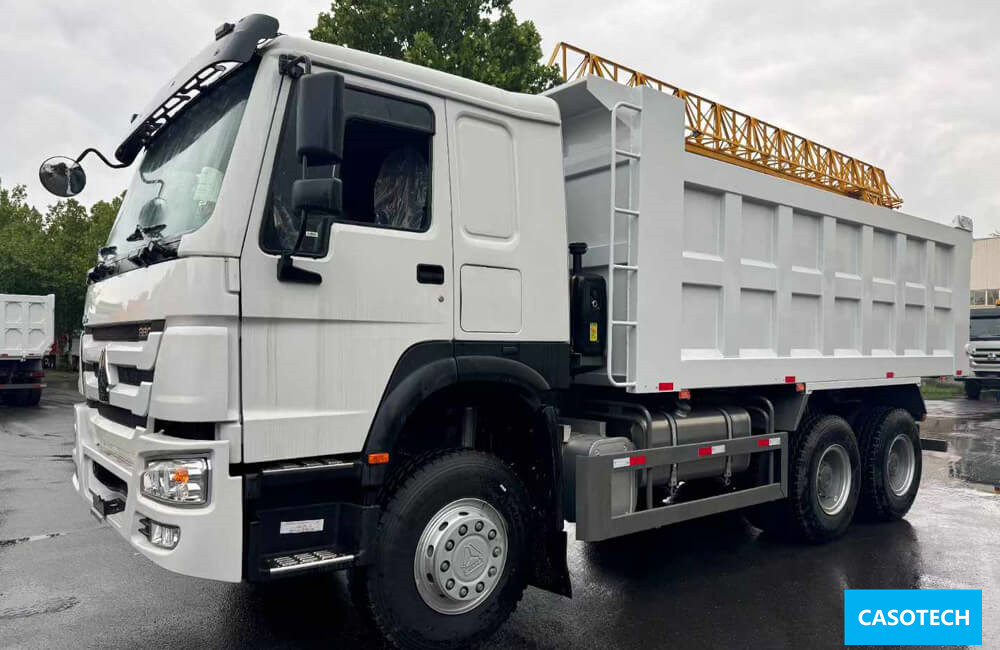

Howo 6x4 380hp 5.6m dump truck ZZ3257V3847B1
Howo 6x4 380hp 5.6m dump truck ZZ3257V3847B1 Specifications & FeaturesBasic Info| Model | ZZ3257V3847B1 | Brand | Howo |
|---|
| Drive model | 6x4 | Engine model | Weichai WP10.380E22 |
|---|
| Gearbox | Fast HW19710 | Rear axle ratio | 5.4 |
|---|
| Dimension (LxWxH) | 6985x2496x3560mm | Tare weight | 8800kg |
|---|
| Payload | 40000kg | Condition | Brand new |
|---|
Product Parameters| Engines | Engine model | WP10.380E22 |
|---|
| No. of cylinders | 6 | | Fuel type | Diesel | | Engine capacity | 9.726L | | Emission standard | Euro 2 | | Max horsepower | 380hp | | Gearboxes | Gearbox model | Fast HW19710 |
|---|
| Gear shifting method | Automatic | | Forward gears | 12 | | Reverse gears | 2 | | Chassis | Rear axle | MCX16ZG rear axle |
|---|

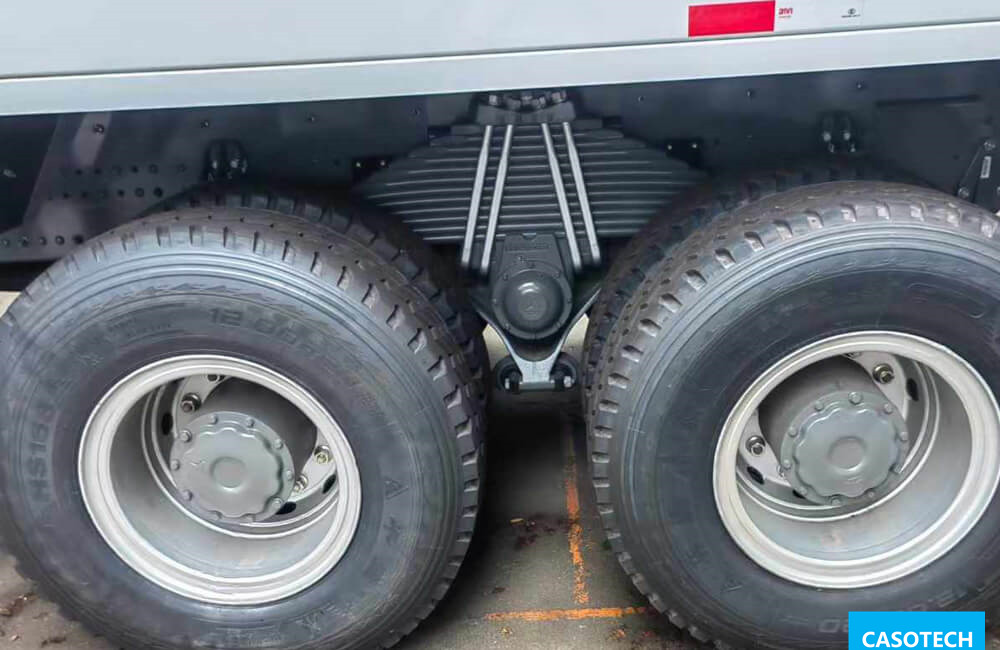

| Rear axle ratio | 4.8 | | Number of leaf springs | 9/12 | | Cargo box | Cargo box Dimension (LxWxH) | 5.6x2.3x1.5m |
|---|
| Thickness of the bottom/side panel | 10/12 | | Tire | Tire numbers | 10 |
|---|
| Tire size | 12.00R20 | | Fuel tank capacity | 400L |
|---|
| Retarder | No |
|---|
|
